In the demanding climate of Maryland, residential comfort is more than a luxury—it is a matter of building science. Homeowners frequently struggle with the limitations of aging HVAC infrastructure, which often manifests as skyrocketing utility costs, uneven temperature distribution, and severe winter dryness. This technical report details a comprehensive system transformation performed by Mega Services Heating & Cooling, replacing a legacy Bryant unit with a high-performance Carrier Infinity Series ecosystem.
By prioritizing mechanical synergy over simple part replacement, this project illustrates the measurable impact of expert-grade installation on energy efficiency and indoor environmental quality (IEQ).
Before recommending a replacement, our team conducted a multi-point performance audit of the existing Bryant configuration. A system's "nominal" efficiency often degrades significantly over 10–15 years due to environmental exposure and outdated design standards.

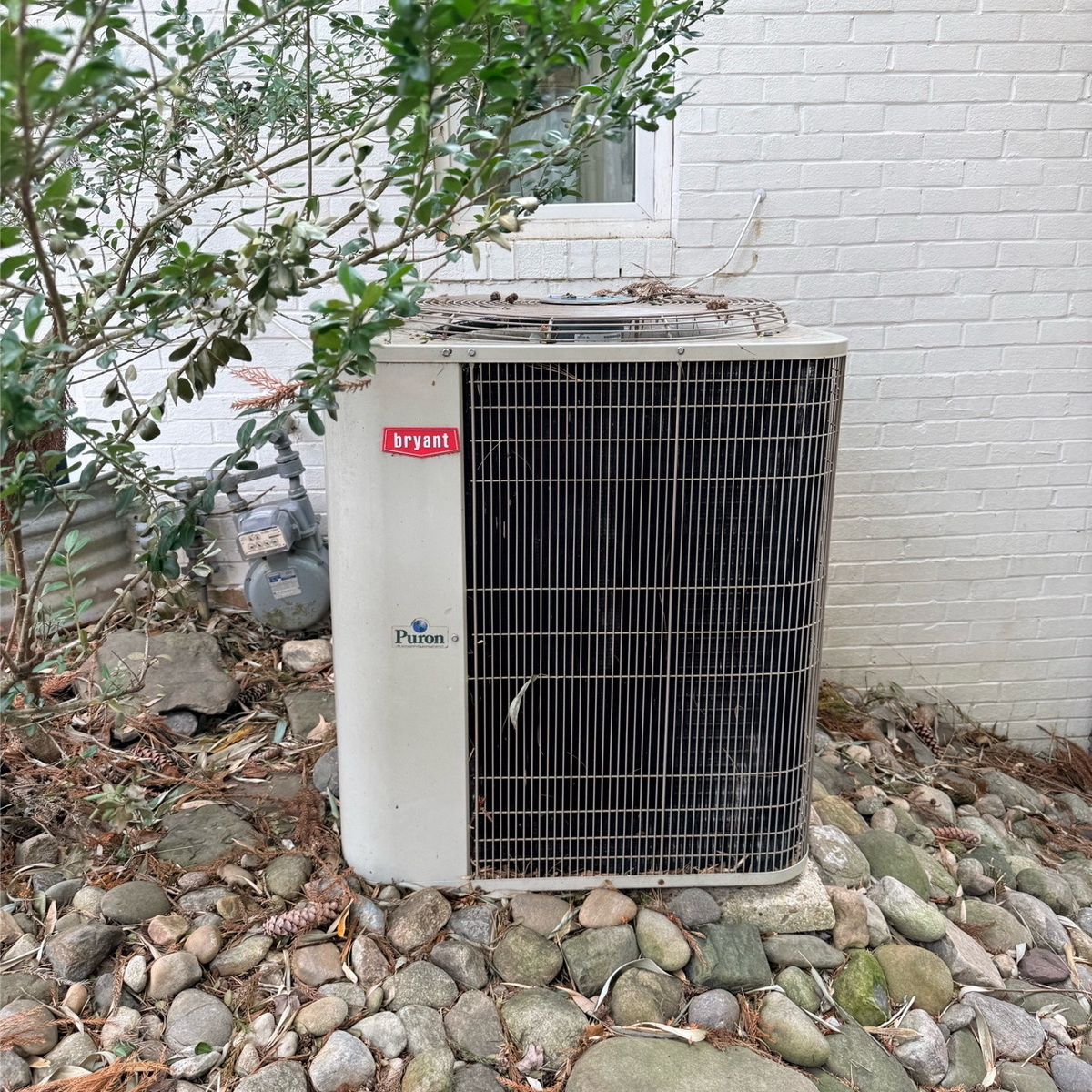

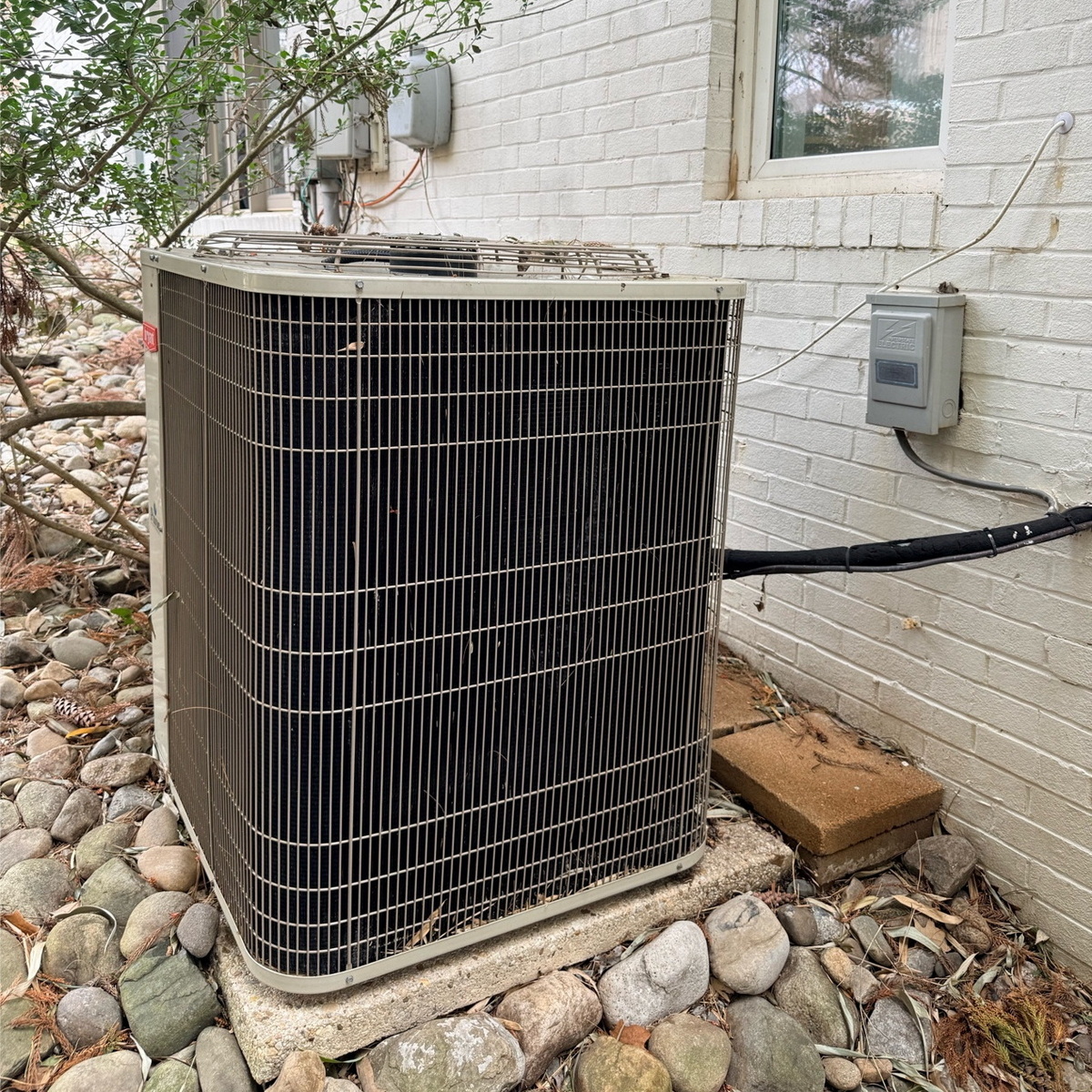

Thermal Exchange Compromise: The outdoor condenser unit suffered from significant fin oxidation and debris buildup. This forced the compressor to work 20–30% harder to reject heat, leading to premature component wear.

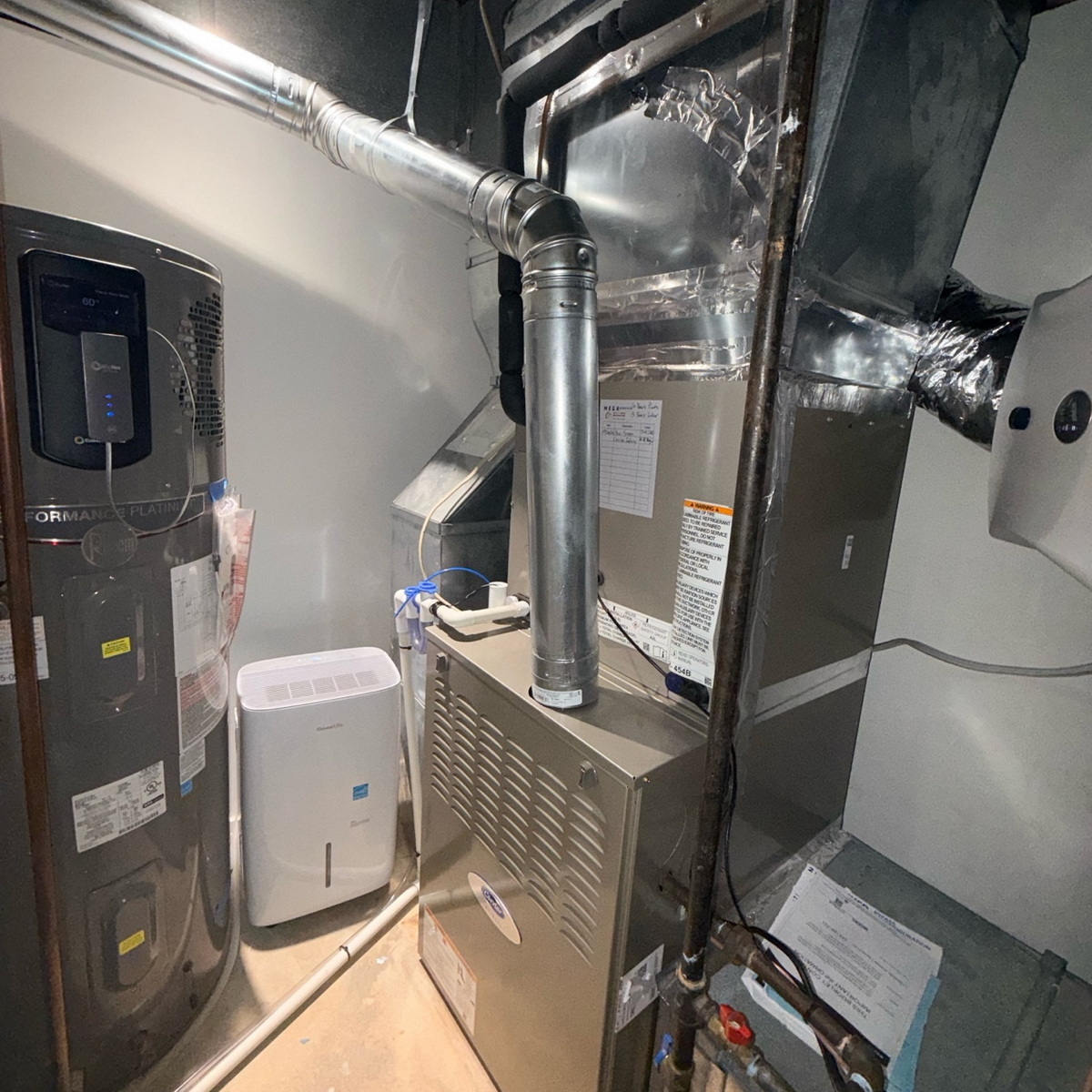

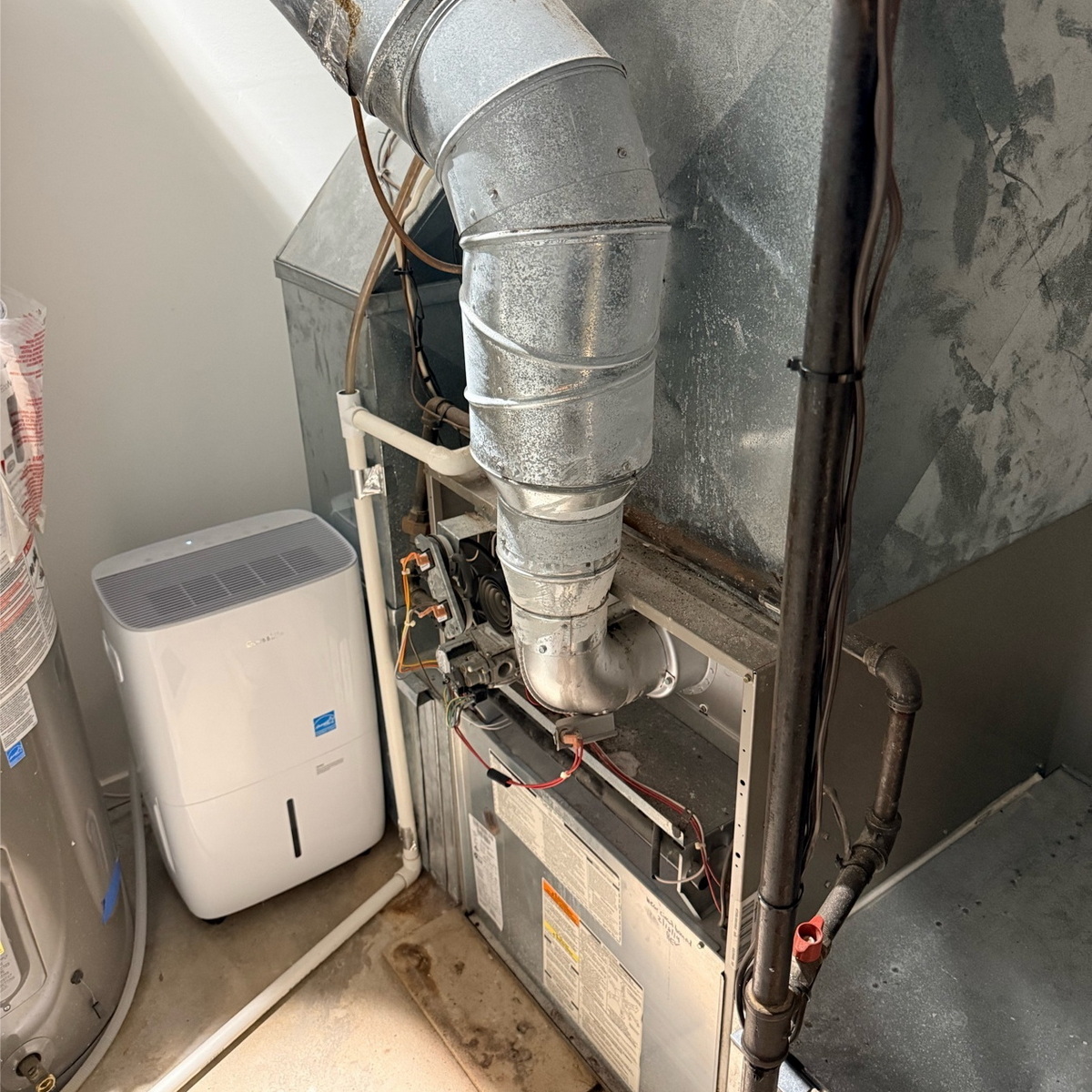

Venting Obsolescence: The indoor furnace utilized a natural-draft metal venting system. Modern building codes and efficiency benchmarks now favor sealed combustion to prevent back-drafting and to reclaim latent heat.
Atmospheric Dryness: In the absence of active humidification, the home's relative humidity dropped below 20% during heating cycles, leading to structural cracks in wood flooring and respiratory discomfort for the occupants.
| Metric | Outgoing Bryant System | New Carrier Infinity Integration |
| Operational Logic | Single-Stage (On/Off) | Variable-Speed (Greenspeed® Intelligence) |
| Airflow Management | Fixed-Speed Blower | Modulating CFM Output |
| Venting Material | Metal B-Vent (High Heat Loss) | Schedule 40 PVC (High Efficiency) |
| Sound Pressure Level | 72+ dB (High Vibration) | <55 dB (Ultra-Quiet) |
To achieve the homeowner's goals of reliability and efficiency, we implemented a fully communicating Carrier Infinity system. This technology represents the pinnacle of residential climate control, utilizing digital sensors to optimize performance in real-time.
Unlike standard units that cycle abruptly, the Infinity condenser operates using variable-speed technology. It can adjust its output in 1% increments, allowing it to run at longer, lower speeds. This continuous operation removes significantly more humidity during the summer and maintains a temperature variance of less than 0.5°F.

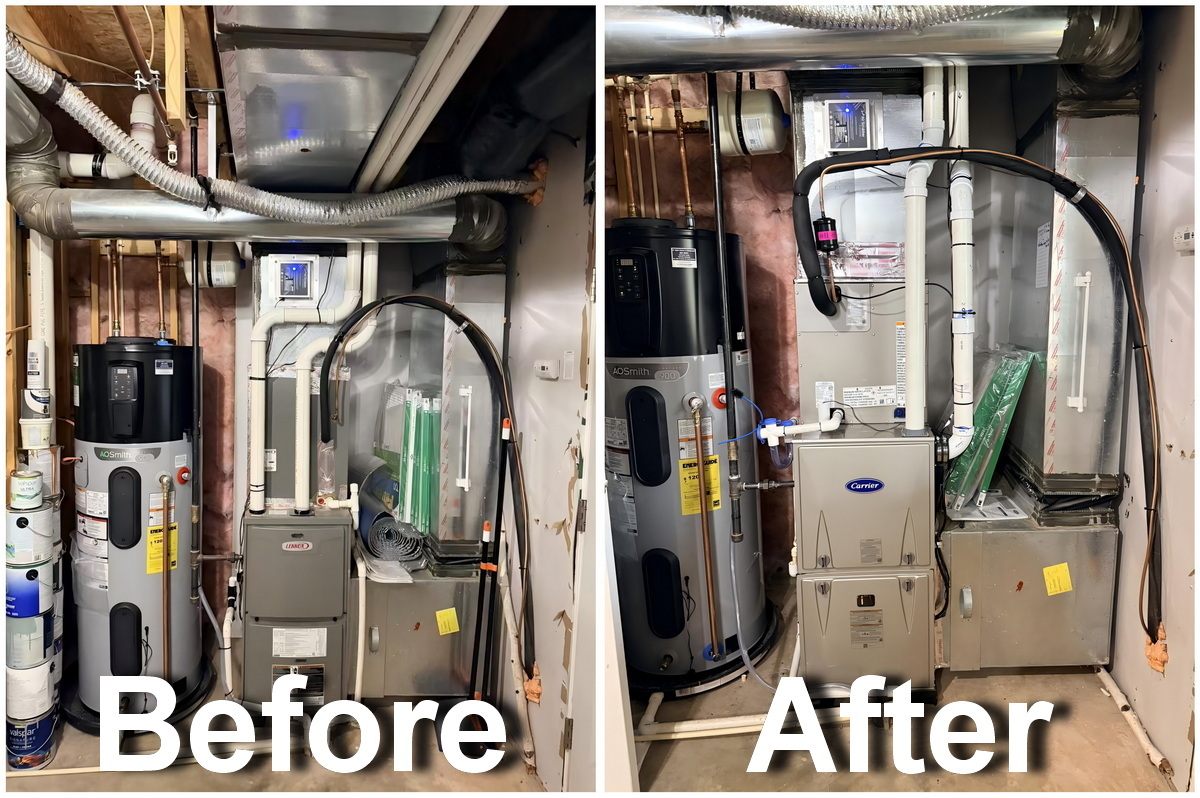

The replacement furnace features a secondary stainless steel heat exchanger. By cooling combustion gases to the point where water vapor condenses, the system captures extra heat that older furnaces simply vent out the chimney. We transitioned the home to a Two-Pipe Sealed Combustion setup, drawing fresh air from the outdoors to ensure the furnace never competes with the occupants for oxygenated air.

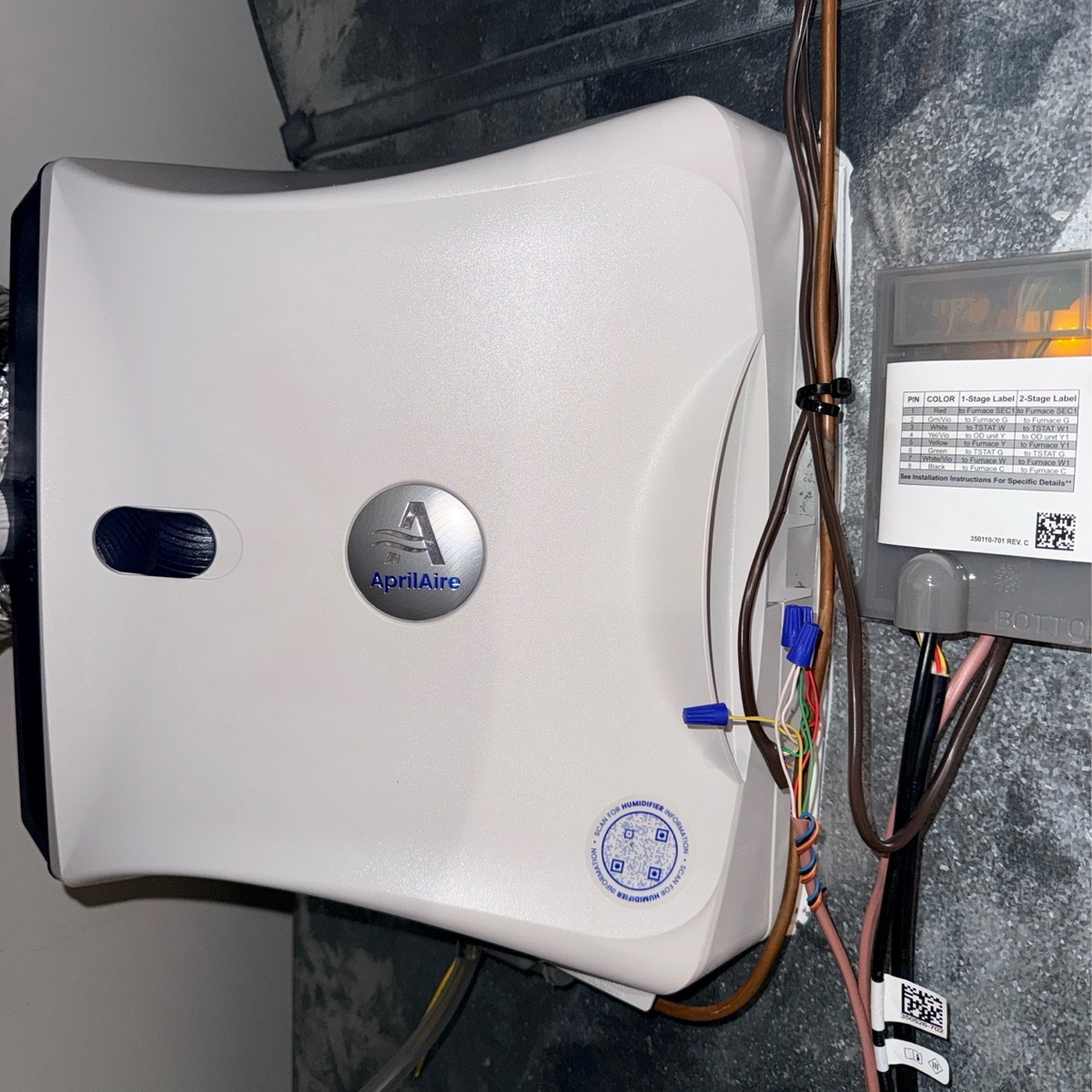

A critical component of this Maryland installation was the integration of an Aprilaire Whole-House Humidifier. In the HVAC industry, air quality is just as vital as air temperature.
Enhanced Thermal Comfort: Humidified air holds heat more effectively. This allows the system to provide the same level of comfort at a lower thermostat setting, reducing gas consumption.
Structural Preservation: By maintaining a consistent 35–45% humidity level, we protected the home's high-value interior woodwork and musical instruments from seasonal contraction.
Filtration Synergy: Properly humidified air helps airborne particles settle or be trapped more effectively by high-MERV filters, improving overall IEQ.
The longevity of a high-end HVAC system is dictated by the quality of its commissioning. Our technicians followed a rigorous "Zero-Defect" installation protocol.

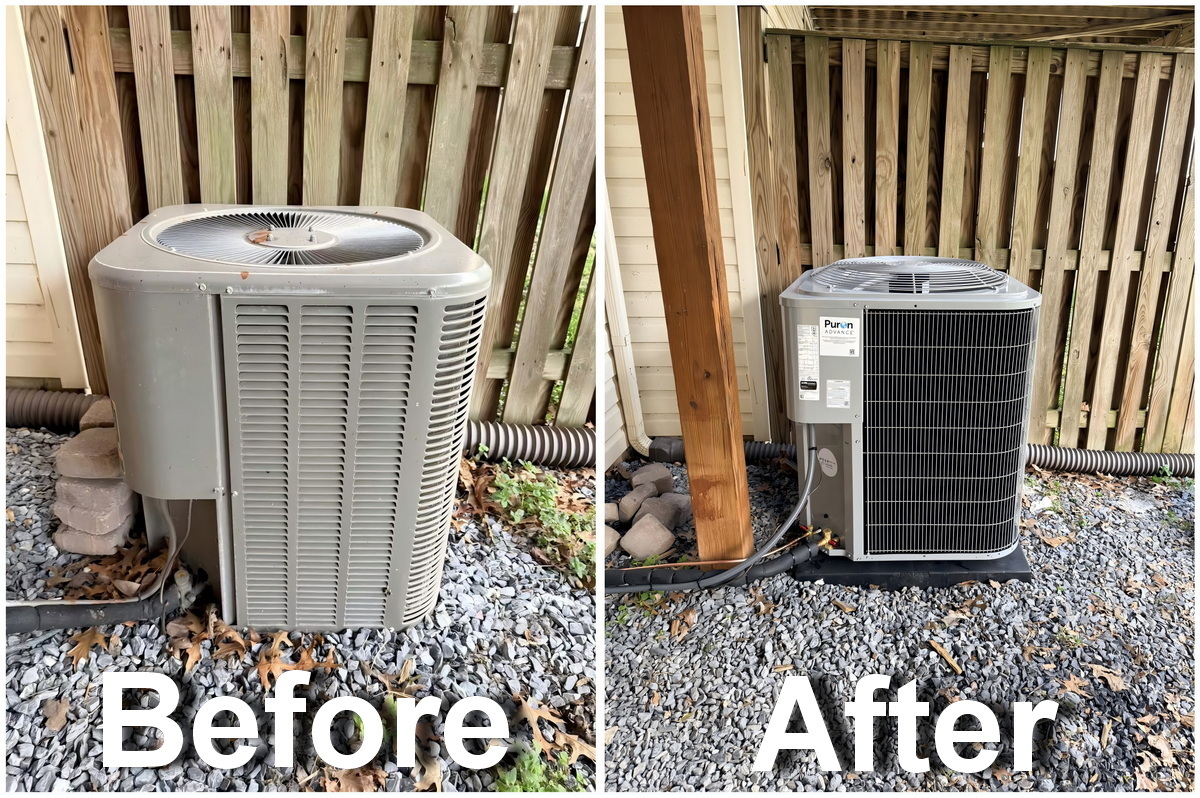

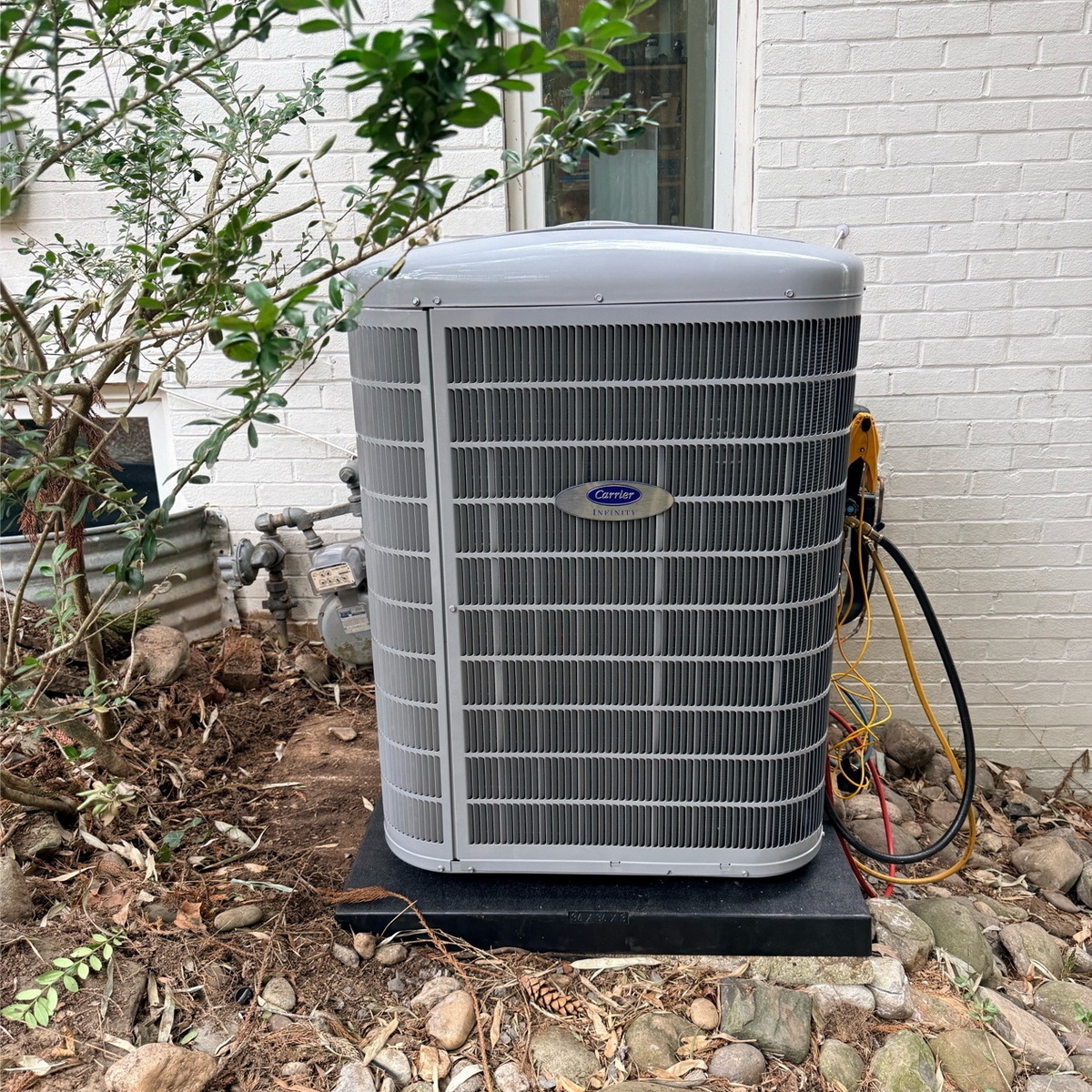

Vibration Isolation: The new outdoor unit was mounted on a leveled, UV-resistant composite pad, reinforced by a gravel sub-base to prevent settling.

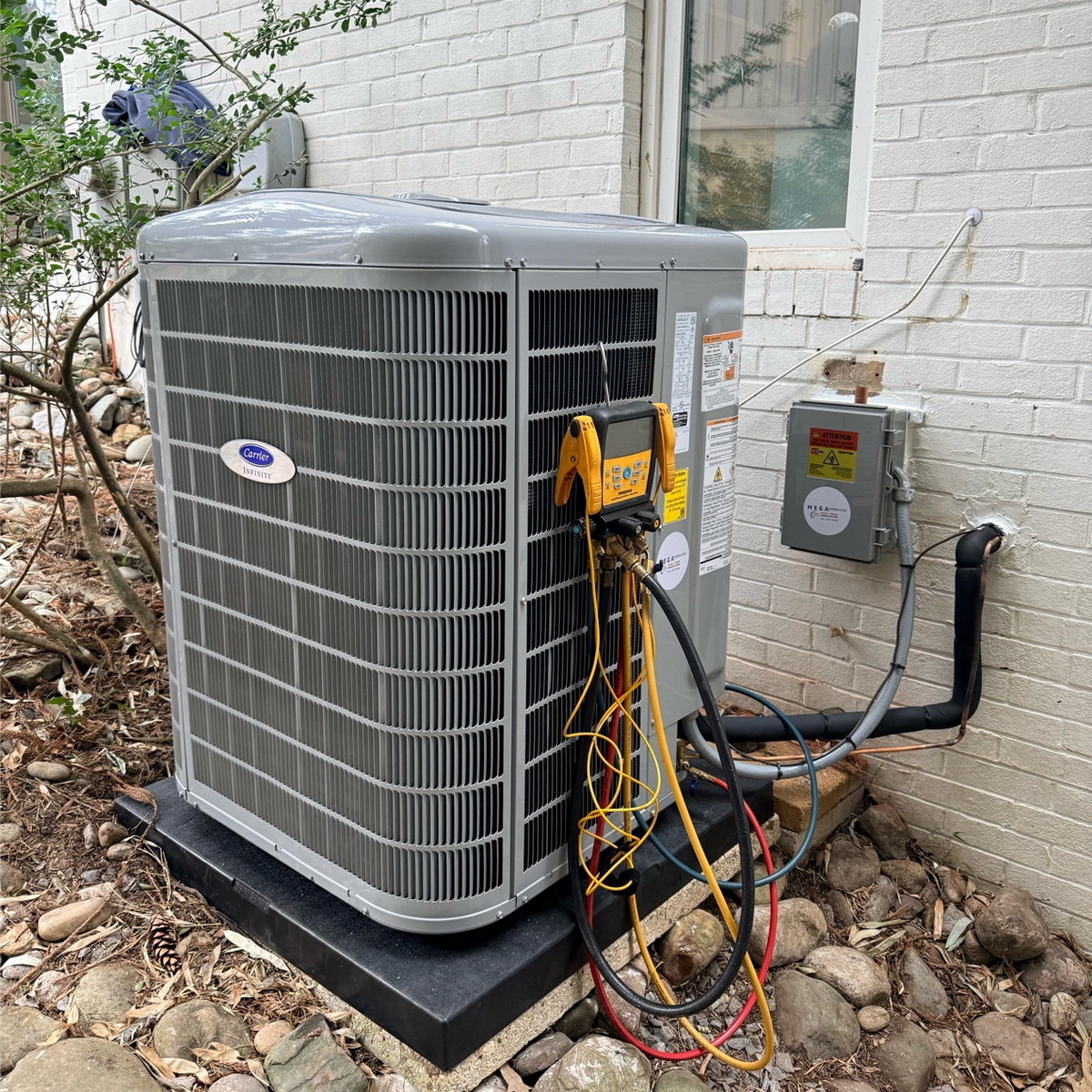

Refrigerant Integrity: All line sets were purged with Nitrogen during brazing to prevent internal oxidation, followed by a deep vacuum pull to 500 microns to ensure a moisture-free environment.
Pro-Grade Insulation: We utilized closed-cell elastomeric insulation on the suction lines to maximize thermal retention and prevent condensation damage in unconditioned spaces.
Electrical Safety: A new weather-shielded disconnect box and liquid-tight conduit were installed to meet 2026 NEC (National Electrical Code) standards.
Following the final commissioning, the system underwent a series of data-driven tests to verify operational parameters.
Energy Savings: The transition to a high-SEER2 variable-speed unit is projected to lower the homeowner's cooling-related electrical load by approximately 35% annually.
Acoustics: The indoor air handler operates with a "soft-start" feature, eliminating the loud "thump" associated with older furnaces.
Stability: Smart-sensor feedback ensures that the Aprilaire humidifier only activates when the furnace is moving enough air to prevent duct condensation.
Variable-speed systems, like the Carrier Infinity, do not just turn on and off. They "throttle" up and down based on the exact needs of the home. This prevents the frequent cycling that causes wear and tear, leads to much lower energy bills, and provides the best humidity control available in the residential market.
High-efficiency furnaces (90%+ AFUE) extract so much heat from the exhaust that the remaining gases are cool enough to condense into water. This acidic condensate would corrode traditional metal vents. PVC is used because it is impervious to this moisture and allows for a sealed combustion process that is safer and more efficient.
The systems are digitally linked. The Infinity Control monitors the outdoor temperature and automatically adjusts the indoor humidity setpoint. This prevents "window sweating" on cold nights while ensuring the air remains comfortable.
Absolutely. Modern compressors are precision-engineered. If the unit is tilted, the internal lubrication (oil) can pool on one side, leaving critical bearings dry. A leveled pad ensures the longevity of the compressor—the most expensive part of the system.
Beyond standard filter changes, the humidifier pad (water panel) should be replaced once per season. We also recommend an annual "clean and snag" for the outdoor coils to maintain the airflow clearance necessary for peak efficiency.
