Choosing the right air conditioning system for your mobile home requires careful consideration of unique structural challenges, regulatory requirements, and efficiency standards. Mobile homes face distinct cooling obstacles due to their elongated floor plans, limited insulation, and specific HUD compliance requirements that differ significantly from traditional residential properties. As HVAC professionals serving homeowners for over a decade, we've installed hundreds of mobile home cooling systems and understand exactly what works—and what doesn't—in manufactured housing environments. [braustin]
Mobile homes present several structural obstacles that impact air conditioning performance and efficiency. [facebook]
The typical single-wide mobile home measures only 14 feet in width but extends 60 to 80 feet in length, creating an extremely narrow rectangular footprint. This elongated design makes it difficult for window units or portable air conditioners to distribute cool air effectively throughout the entire living space. Heat builds up more rapidly in mobile homes compared to traditional houses because of thinner wall construction, minimal ceiling insulation, and large window-to-wall ratios. [smartairhvac]
A standard 14×70 mobile home encompasses approximately 980 square feet, which falls well within the cooling capacity of most residential AC units. However, square footage alone doesn't tell the complete story. The distance air must travel from a single cooling source to reach opposite ends of the home creates significant temperature variations between rooms. [braustin]
Most mobile homes built before 2000 have R-values substantially lower than current building codes require for site-built homes. Undersized or missing belly insulation, gaps around windows and doors, and ductwork problems in crawl spaces contribute to energy losses that can increase cooling costs by 20-40% compared to well-insulated homes. These efficiency challenges mean mobile homeowners need properly sized, strategically placed cooling systems to maintain comfort without excessive energy consumption. [smartairhvac]
Central air conditioning represents the most effective and reliable cooling option for mobile homes with existing ductwork. [hvacdirect]
Central HVAC systems distribute conditioned air through vents located in every room, ensuring consistent temperature control throughout the entire mobile home. Unlike window units that cool only the immediate area, central air provides whole-home comfort with precise thermostat control. For mobile homes already equipped with ductwork, central air installation typically costs between $4,000 and $9,000, which is often substantially less than installing central cooling in a larger site-built home. [surpluscityliquidators]
HUD Compliance Requirements
All central air systems installed in manufactured homes must meet HUD (Housing and Urban Development) approval standards. Standard residential AC units cannot be used in mobile homes because they may not fit properly, could exceed weight limits, won't meet specific venting requirements, and may void warranties or violate building codes. HUD-approved units feature compact blowers, vented cabinets to prevent overheating, and designs specifically tested for manufactured housing applications. [iwae]
Proper sizing is critical for efficiency, comfort, and system longevity. The general rule estimates 20 BTU per square foot of living space, but several factors require adjustments: [braustin]
- Sun exposure: Homes receiving significant direct sunlight need 10% additional capacity, while heavily shaded properties can reduce capacity by 10% [braustin]
- Occupancy: Add 600 BTU for each person beyond two regular occupants [braustin]
- Kitchen considerations: If the AC will cool kitchen areas, add 4,000 BTU to account for heat from appliances [braustin]
- Climate zone: Southern regions with extreme heat and humidity require higher BTU ratings than moderate climates [braustin]
For the common 14×70 mobile home (980 square feet), the appropriate central air capacity typically ranges from 18,000 to 21,000 BTU under normal conditions. Smaller mobile homes under 800 square feet usually require 12,000 to 18,000 BTU units, while larger homes exceeding 1,000 square feet may need systems rated above 21,000 BTU. [braustin]
SEER2 (Seasonal Energy Efficiency Ratio) ratings measure how efficiently an air conditioner converts electricity into cooling power. Higher SEER2 ratings mean lower operating costs and reduced environmental impact. Most modern mobile home AC systems feature SEER2 ratings between 13 and 16, with premium models reaching 21 or higher. [stylecrestinc]
Each single point increase in SEER rating delivers approximately 7% greater energy efficiency. For example, upgrading from a SEER 10 system to SEER 14 provides roughly 28% energy savings annually. In hot climates where air conditioners run 6-8 months yearly, this efficiency improvement can reduce cooling costs by $200-400 annually. [homedepot]
When central air isn't feasible due to budget constraints or lack of existing ductwork, several alternative solutions provide effective cooling. [iwae]
Ductless mini-split heat pumps represent the best combination of comfort, efficiency, and value for mobile homes without ductwork. These systems consist of an outdoor compressor connected to one or more indoor air handlers via small refrigerant lines that require only a three-inch hole through the wall. Installation costs range from $2,000 to $14,500 depending on the number of zones and system capacity. [angi]
Mini-splits offer several advantages for mobile home applications. They provide both heating and cooling from a single system, eliminate energy losses associated with leaky ductwork, allow independent temperature control for different rooms, and operate quietly compared to window units. Many homeowners find mini-splits particularly effective in mobile homes because indoor units can be strategically placed to address the challenging elongated floor plan. [thefurnaceoutlet]
Window air conditioners and through-the-wall units cost between $600 and $1,200 and cool individual rooms or open spaces. These units range from 5,000 BTU for small bedrooms to 18,000 BTU for larger living areas. For mobile homeowners choosing window units, we recommend installing multiple smaller units rather than relying on a single large one. [facebook]
Strategic Placement Tips
Window unit effectiveness depends heavily on placement location. Installing units in north or east-facing windows provides significantly better cooling performance than south or west-facing installations, which fight against afternoon sun exposure. Mobile home bedrooms can be cooled very effectively with small window units, but the main challenge lies in adequately cooling the typically open-concept living room and kitchen area. [facebook]
Portable AC units offer mobility and flexibility, allowing homeowners to move cooling capacity to whichever room needs it most. However, portable units typically cost more than comparable window units and provide less efficient cooling because the exhaust hose releases some conditioned air outdoors. Portable units work best as supplemental cooling for specific rooms or as temporary solutions while planning a permanent installation. [facebook]
Package units combine heating and cooling components into a single cabinet installed outside the mobile home. These compact systems are popular in mobile home applications because they save valuable interior space and simplify installation. A 2.5-ton package unit typically provides sufficient capacity for standard single-wide mobile homes, while larger double-wide units may require 3-4 ton systems. [surpluscityliquidators]
Package units designed specifically for mobile homes meet HUD requirements and integrate seamlessly with existing ductwork. Installation costs for package unit replacements range from $4,000 to $8,000 depending on system size, efficiency rating, and installation complexity. [acdirect]
Even the most efficient air conditioning system performs poorly without proper air circulation. [facebook]

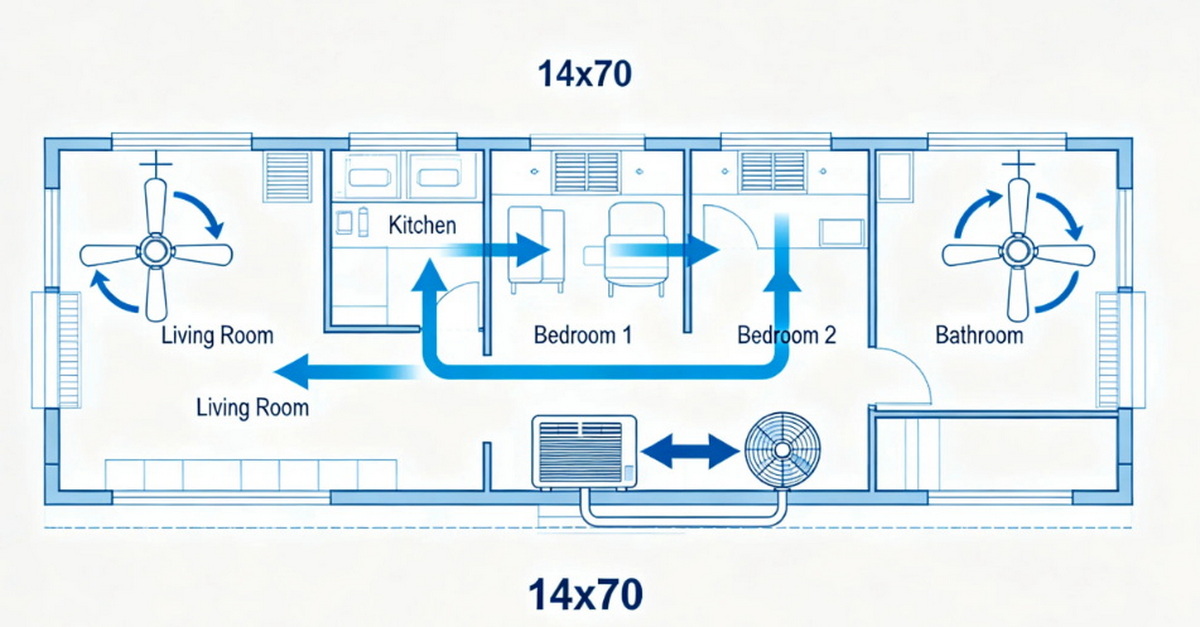

Strategic fan usage dramatically improves cooling distribution and comfort levels throughout mobile homes. Positioning a box fan or tower fan near your air conditioner and directing it away from the unit pulls cool air through the room, creating circulation that reaches areas far from the AC source. This technique works particularly well in long mobile home layouts where air stagnates in rooms distant from the cooling unit. [facebook]
Ceiling fans provide exceptionally effective air distribution in mobile homes. Running ceiling fans counterclockwise during summer creates a downdraft that produces a noticeable cooling breeze, allowing homeowners to raise thermostat settings by 3-4 degrees without sacrificing comfort. This simple strategy can reduce cooling costs by 15-20% during peak summer months. [facebook]
For mobile homes with central air systems, ductwork condition directly impacts cooling efficiency and performance. Common ductwork problems in manufactured homes include disconnected joints in belly boards, inadequate insulation causing condensation issues, crushed or damaged ducts from rodent activity, and air leaks at register connections. [smartairhvac]
Professional ductwork inspection and sealing typically costs $300 to $1,000 but can improve system efficiency by 20-30%. We recommend having ductwork professionally evaluated every 3-5 years to identify and address problems before they significantly impact comfort and energy costs. [nerdwallet]
Understanding total ownership costs helps mobile homeowners make informed cooling system decisions. [momentumacpro]
Central air conditioning installation in mobile homes with existing ductwork averages $4,000 to $9,000 for complete system replacement. This includes the outdoor condensing unit, indoor air handler or furnace with evaporator coil, refrigerant lines, thermostat, and professional installation labor. Mobile homes without existing ductwork face additional costs of $2,000 to $7,500 for duct installation. [surpluscityliquidators]
Ductless mini-split systems range from $2,000 to $14,500 depending on the number of indoor units and system capacity. A single-zone mini-split for a small mobile home costs substantially less than multi-zone systems serving larger manufactured homes. Window units represent the most affordable option at $150 to $550 per unit, though cooling an entire mobile home typically requires 2-3 units for adequate coverage. [angi]
Energy efficiency directly impacts annual cooling expenses. A mobile home in a hot climate running a 3-ton central air system 8 months yearly consumes approximately 3,600-5,400 kWh annually depending on SEER rating. At average electricity rates of $0.13-0.15 per kWh, this translates to $470-810 in annual cooling costs. [stylecrestinc]
Upgrading from a SEER 10 system to SEER 16 reduces energy consumption by approximately 37%, saving $175-300 annually. Over a 15-year system lifespan, this efficiency improvement delivers $2,625-4,500 in total energy savings, often exceeding the initial cost premium for higher-efficiency equipment. [homedepot]
Many utility companies and government programs offer rebates for high-efficiency cooling system installations. Federal tax credits may provide up to $300-600 for qualifying HVAC equipment, while local utility rebates often range from $200-1,000 depending on system efficiency and region. When obtaining installation quotes, always ask contractors about available rebates and incentive programs that can offset initial equipment costs. [budgetheating]

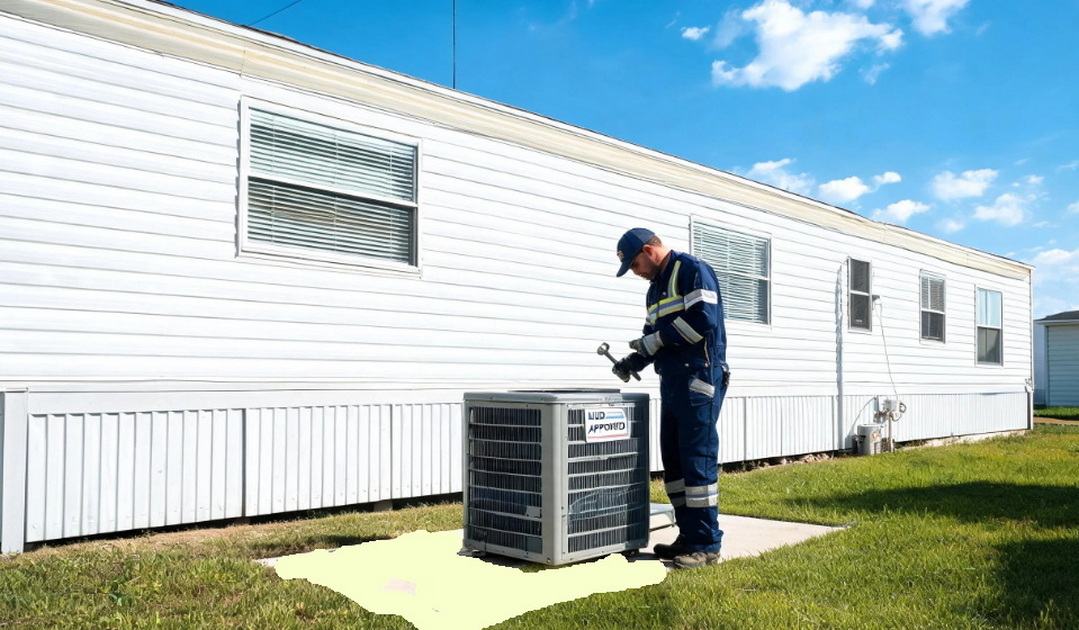

While some homeowners consider self-installation to reduce costs, HVAC work in mobile homes requires specialized knowledge and certifications. [hud]
HUD manufactured home installation regulations require licensed installers to certify that HVAC systems have been installed according to federal standards. Qualified inspectors must verify compliance with installation requirements before the system can be legally operated. Attempting DIY installation without proper licensing violates federal regulations, voids equipment warranties, creates safety hazards, and may result in insurance claim denials if problems occur. [hud]
Professional installation ensures proper refrigerant charging, correct airflow balancing, accurate duct sizing, appropriate electrical connections, and compliance with all local codes. Licensed HVAC contractors carry liability insurance protecting homeowners from installation errors and provide warranty coverage for both equipment and labor. [nerdwallet]
We strongly recommend obtaining 2-3 written estimates from licensed HVAC contractors before making installation decisions. Quality proposals should include specific model numbers, SEER ratings, AHRI matched-system certifications, comprehensive warranty terms, and information about available rebates. Comparing multiple detailed bids helps homeowners understand fair market pricing and identify contractors offering the best value. [budgetheating]
Red flags indicating potentially problematic contractors include refusing to provide written estimates, offering prices significantly below competitors without clear explanations, pressure tactics demanding immediate decisions, inability to provide licensing and insurance verification, and vague system specifications without model numbers.
Regular maintenance extends equipment lifespan, maintains efficiency, and prevents costly breakdowns. [coolairmd]
Mobile home air conditioning systems require preventive maintenance at least annually, ideally before each cooling season begins. Essential maintenance tasks include replacing air filters every 1-3 months depending on usage, cleaning outdoor condenser coils to remove debris and maintain airflow, checking refrigerant levels and pressures, inspecting electrical connections for signs of corrosion, lubricating blower motor bearings, and clearing condensate drain lines to prevent overflow. [coolairmd]
Professional tune-ups typically cost $80-150 and identify potential problems before they cause system failures. Technicians use specialized tools to measure refrigerant superheat and subcooling, test capacitor performance, verify amp draw on compressor and blower motors, and assess overall system operation. Regular professional maintenance typically extends equipment life by 3-5 years and maintains peak energy efficiency. [coolairmd]
Mobile home cooling systems face unique challenges that homeowners should monitor. Ductwork in belly boards is particularly vulnerable to damage from moisture, rodents, and settling. Disconnected or crushed ducts reduce airflow and efficiency, often causing uneven cooling between rooms. Undersized return air grilles restrict airflow and force systems to work harder, increasing energy costs and shortening equipment life. [smartairhvac]
We frequently encounter mobile homes with oversized air conditioning systems installed by contractors unfamiliar with manufactured housing requirements. Oversized units cycle on and off too frequently, fail to adequately remove humidity, wear out components prematurely, and consume more energy than properly sized equipment. If your mobile home feels humid or temperatures swing dramatically, oversizing may be the culprit. [braustin]
Selecting the optimal cooling system for your mobile home depends on several interconnected factors. [budgetheating]
Before making a final decision, evaluate these critical considerations:
- Existing infrastructure: Does your mobile home have ductwork in good condition, or would ductless mini-splits be more practical?
- Budget constraints: What can you afford initially, and what will long-term operating costs be over 10-15 years?
- Climate demands: Do you live in a region with extreme heat requiring robust cooling capacity and high-efficiency equipment?
- Future plans: Will you remain in this mobile home long enough to recoup investment in premium efficiency equipment?
- Heating needs: Would a heat pump providing both cooling and heating make sense for year-round comfort?
Mobile homeowners in hot climates with existing ductwork typically benefit most from HUD-approved central air conditioning with SEER 14-16 ratings. Those in moderate climates or homes without ductwork often find ductless mini-splits provide the best balance of efficiency, comfort, and installation simplicity. [iwae]
For homeowners on tight budgets or in mobile homes used seasonally, multiple strategically placed window units combined with ceiling fans can provide adequate cooling at minimal initial cost. While not as efficient or convenient as central systems, this approach allows comfortable living while saving for a permanent solution. [iwae]
At Mega Services Heating & Cooling, we specialize in creating safe, comfortable, and energy-efficient environments for mobile homeowners. Our certified technicians understand the unique requirements of manufactured housing and install only HUD-approved equipment that meets or exceeds all regulatory standards. We provide free in-home consultations, detailed written estimates, and comprehensive warranty coverage for both equipment and installation labor.
Contact us today to schedule your mobile home cooling system evaluation and discover how the right air conditioning solution can transform your comfort while reducing energy costs.
A 14×70 mobile home (approximately 980 square feet) typically requires an air conditioner rated between 18,000 and 21,000 BTU. The exact size depends on factors including sun exposure, number of occupants, climate zone, and insulation quality. Professional load calculations ensure accurate sizing for optimal efficiency and comfort. [braustin]
No, mobile homes require HUD-approved HVAC equipment specifically designed for manufactured housing. Standard residential units may not fit properly, could exceed weight limits, won't meet venting requirements, and may void warranties or violate building codes. Always specify mobile home-rated equipment when purchasing replacement systems. [acdirect]
Central air installation in mobile homes with existing ductwork typically costs between $4,000 and $9,000 depending on system size, efficiency rating, and installation complexity. Homes without existing ductwork face additional costs of $2,000 to $7,500 for duct installation, making ductless mini-splits potentially more cost-effective alternatives. [momentumacpro]
Yes, ductless mini-split systems are excellent for mobile homes, especially those without existing ductwork. They provide both heating and cooling, eliminate ductwork energy losses, allow zone control for different rooms, and install with minimal structural modifications. Costs range from $2,000 to $14,500 depending on system capacity and number of zones. [angi]
Reduce cooling costs by upgrading to high-efficiency equipment (SEER 14-16 or higher), sealing ductwork to prevent air leaks, adding insulation to walls and ceilings, weatherstripping doors and windows, using ceiling fans to improve air circulation, maintaining clean air filters, scheduling annual professional maintenance, and installing a programmable thermostat. These improvements typically reduce energy consumption by 20-40% annually. [stylecrestinc]
