This article explains how to test HVAC compressor motor windings, identify common, start, and run terminals, and check for open overloads or ground faults. It is written for technicians and informed homeowners who want a clear, practical troubleshooting guide.
When an air conditioner or heat pump stops cooling, the compressor is often the first component people suspect. But before replacing an expensive part, the better approach is to test the windings, verify the terminals, and rule out a short to ground or an open overload.
A careful diagnosis helps avoid unnecessary replacement and points to the real cause of the problem. In many cases, the compressor is not the only issue, and the root cause may be electrical, mechanical, or related to a system condition that led to overheating.
A compressor can fail in different ways, and not all of them mean the compressor itself is ruined. It may have a weak start circuit, an open thermal overload, damaged windings, or a true ground fault.
This is why the testing process should be systematic. If you skip steps, you can misread a temporary overload condition as a permanent failure or replace a compressor when the real issue is elsewhere in the system.
Before any testing, turn off power at the disconnect and verify that no voltage is present. Compressor testing involves electrical hazards, so the unit must be de-energized before you remove wires or measure resistance.
- Shut off power at the disconnect and breaker.
- Verify zero voltage with a meter.
- Remove compressor wires before testing resistance.
- Use a dedicated ohmmeter or multimeter set to ohms.
- Keep the area dry and work carefully around exposed terminals.

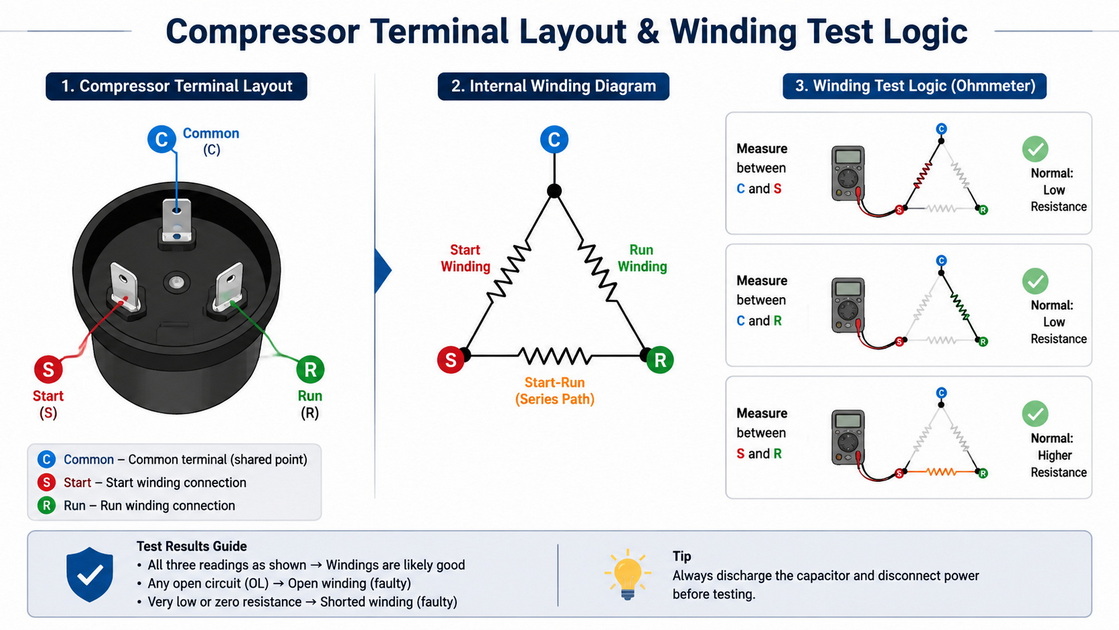

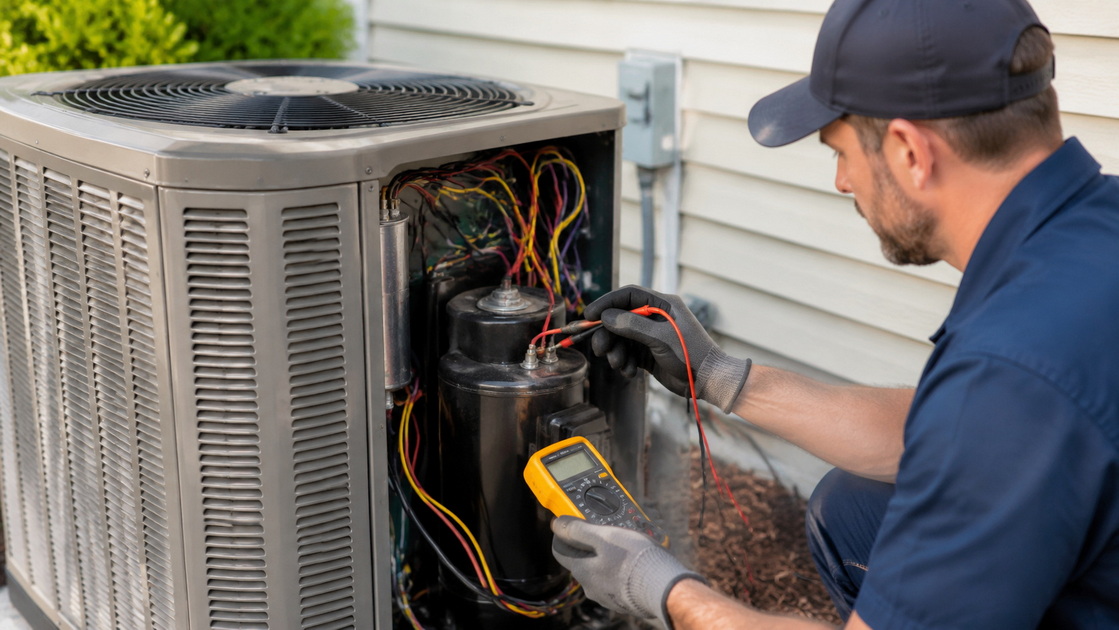

The simplest way to identify the compressor terminals is by measuring resistance between all three pairs of terminals. On a single-phase compressor, the three readings should follow a predictable pattern.
The lowest resistance reading is between common and run. The middle reading is between common and start. The highest reading is between start and run because that measurement includes both windings in series.
The resistance between common and start plus the resistance between common and run should equal the resistance between start and run.
| Measurement | Expected pattern |
|---|---|
| Common to Run | Lowest reading |
| Common to Start | Middle reading |
| Start to Run | Highest reading, about the sum of the other two |
If the readings do not fit this pattern, the compressor may have an internal problem. In that case, it is worth retesting carefully before making a replacement decision.
If the compressor is hot, an internal overload may open and interrupt the circuit. That can make the compressor seem dead even though the winding itself is not permanently damaged.
In that situation, allow the compressor to cool and retest the terminals. If the readings return after cooling, the overload was likely protecting the compressor from overheating rather than indicating a failed motor.
- The compressor was recently running hot.
- The unit stopped suddenly after a long runtime.
- Resistance readings show OL or no continuity at first.
- Readings return after the compressor cools.

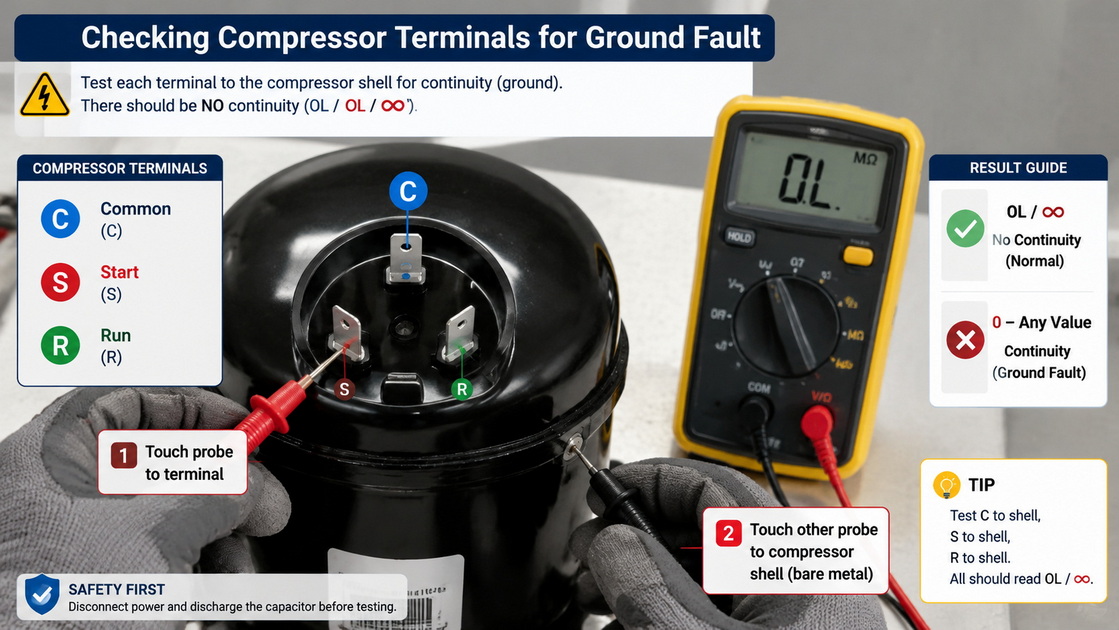

A short to ground is one of the clearest signs of compressor failure. To check this, place one meter lead on the compressor shell or a cleaned metal surface connected to the compressor, then touch the other lead to each terminal one at a time.
If the meter shows continuity or a measurable resistance path to ground, the compressor is shorted. If the meter shows OL or infinite resistance, the compressor is not shorted to ground.
- Continuity between a terminal and the shell.
- Repeated breaker trips or blown fuses.
- Burnt insulation or discolored terminals.
- A strong electrical odor near the compressor.
Once you have the resistance values, the pattern tells you a lot about the condition of the compressor. Balanced readings usually point to healthy windings, while mismatched values can reveal an open winding, a ground fault, or a failing compressor.
| Test result | What it usually means |
|---|---|
| Balanced resistance across all three pairings | Windings are likely good |
| OL on one or more winding tests | Possible open winding or open overload |
| Resistance to shell/ground | Short to ground |
| Very low or zero resistance across windings | Possible internal short |
A compressor that fails these tests should be evaluated as part of the whole system, not in isolation. Voltage issues, failed capacitors, airflow restrictions, refrigerant problems, and overheated components can all contribute to the symptoms.
Some compressor symptoms point more strongly to a wiring or start circuit issue than to a failed compressor. Looking at the symptom pattern can save time and improve the accuracy of the diagnosis.
| Symptom | Possible cause | Next check |
|---|---|---|
| Compressor hums but does not start | Weak capacitor, locked rotor, or start issue | Check capacitor and winding readings |
| Compressor will not run | Open overload, bad contactor, or open winding | Verify voltage and resistance readings |
| Breaker trips immediately | Short to ground or severe internal fault | Test each terminal to ground |
| Compressor stops after running hot | Overload opening due to heat | Allow cooling and retest |
| Weak cooling, long runtime | Airflow or refrigerant issue | Inspect coils, filter, and refrigerant condition |

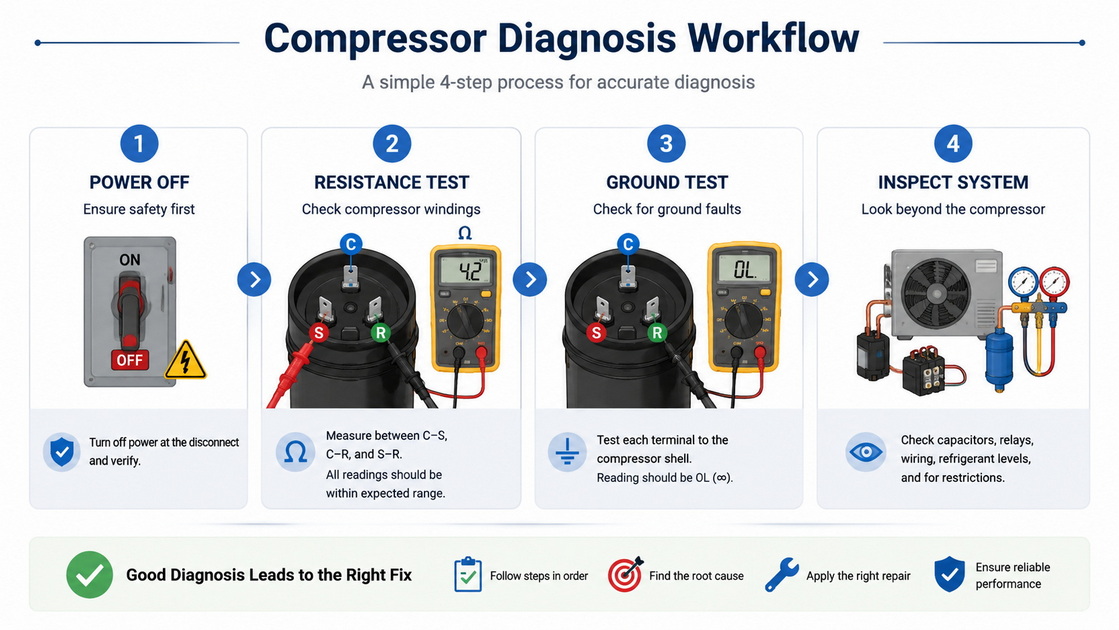

A good diagnostic process makes the result easier to trust. The steps below reflect how experienced technicians approach compressor testing in the field.
1. Confirm the thermostat is calling for cooling.
2. Verify line voltage is present at the equipment.
3. Shut off power and remove compressor leads.
4. Measure resistance between all three terminal pairs.
5. Identify common, start, and run using the resistance pattern.
6. Test each terminal to ground.
7. If the overload is open, allow the compressor to cool and retest.
8. Inspect the capacitor, contactor, wiring, and airflow condition.
9. Review whether the symptom is electrical, mechanical, or system-related.
10. Document the readings before recommending repair or replacement.
Compressor diagnosis is most reliable when you look beyond the compressor itself. Dirty coils, poor airflow, low refrigerant, and voltage instability can all drive overheating and create compressor symptoms that look worse than they are.
That is why good service work includes both component testing and system inspection. A compressor may still be the final failure point, but the underlying cause often determines whether the fix lasts.
Some homeowners can understand the symptoms, but actual compressor testing should be handled by trained HVAC professionals. The process involves electrical measurement, safe isolation of the system, and knowledge of what the readings mean in context.
If the unit is tripping breakers, showing a ground fault, making unusual compressor noise, or repeatedly shutting down on overload, a professional diagnosis is the safest choice. That helps prevent further damage and avoids guesswork.
Measure resistance between all three terminal pairs. The lowest reading is common to run, the middle reading is common to start, and the highest is start to run.
OL usually means an open circuit or infinite resistance. It may point to an open winding or an open overload that has not reset yet.
Place one meter lead on the compressor shell or a cleaned metal ground point and the other lead on each terminal. Any measurable resistance or continuity indicates a short to ground.
Yes. If the internal overload has opened from heat, the compressor may test open until it cools and resets.
It is better left to a trained HVAC technician because the process involves electrical hazard, system isolation, and interpreting the readings correctly.
