Proper refrigerant line sizing is one of the most important but least understood parts of an HVAC installation. It affects how well refrigerant moves through the system, how efficiently the compressor operates, and how reliably the equipment performs over time.
For homeowners, this means refrigerant line size can influence comfort, energy use, and repair frequency. For contractors, it is a critical design detail that should never be left to guesswork.

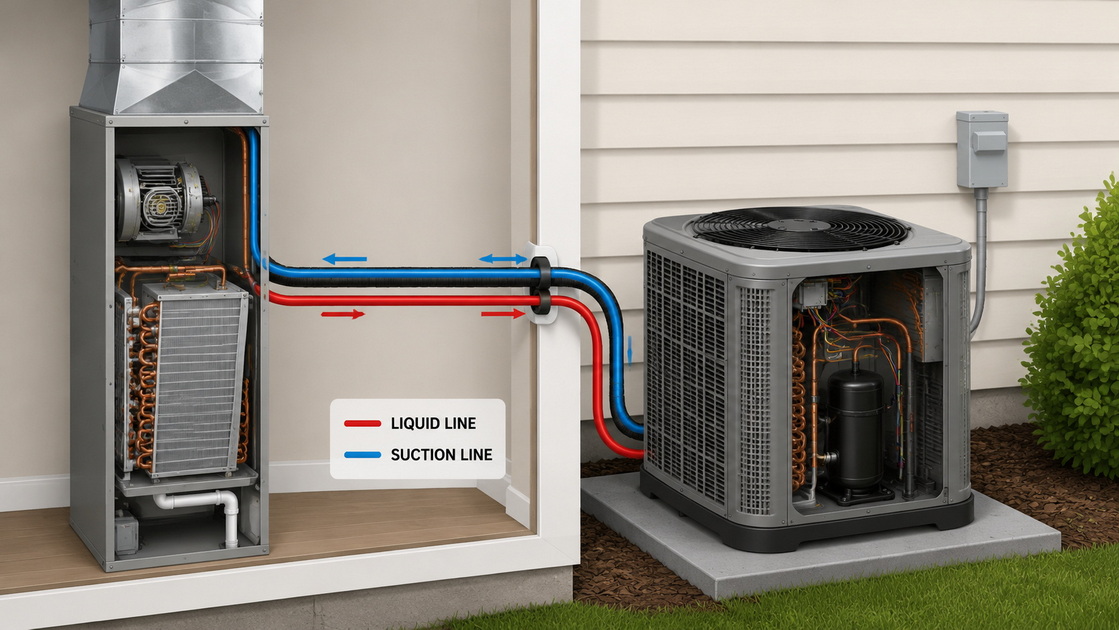

Refrigerant lines do more than connect indoor and outdoor equipment. They must move refrigerant at the right speed while also helping compressor oil return to the system correctly.
If the lines are too small, the system may experience excessive pressure drop, poor oil return, and reduced performance. If the lines are too large, refrigerant velocity can fall below what is needed for proper oil transport.
In short, refrigerant line sizing is not just about pipe diameter. It is about maintaining the right balance of flow, pressure, and reliability.
There is no universal refrigerant line size that works for every installation. The correct size depends on several conditions:
- Refrigerant type.
- Equipment capacity.
- Total line length.
- Vertical rise or drop.
- Number of bends and fittings.
- Manufacturer requirements.
- System operating temperatures.
Two systems with the same tonnage can still require different line configurations. A long run with multiple elbows creates more resistance than a short, direct connection.
That is why proper sizing must account for the full route, not only the straight distance between units.
Many people assume refrigerant line sizing is simply a matter of matching a pipe size to the unit's capacity. In real installations, the process is more detailed.
The line must support refrigerant flow without creating too much resistance. At the same time, it must allow oil to return to the compressor under changing operating conditions.
This balance is what makes line sizing so important. A system may still run with the wrong line set, but it will often run less efficiently and less reliably.

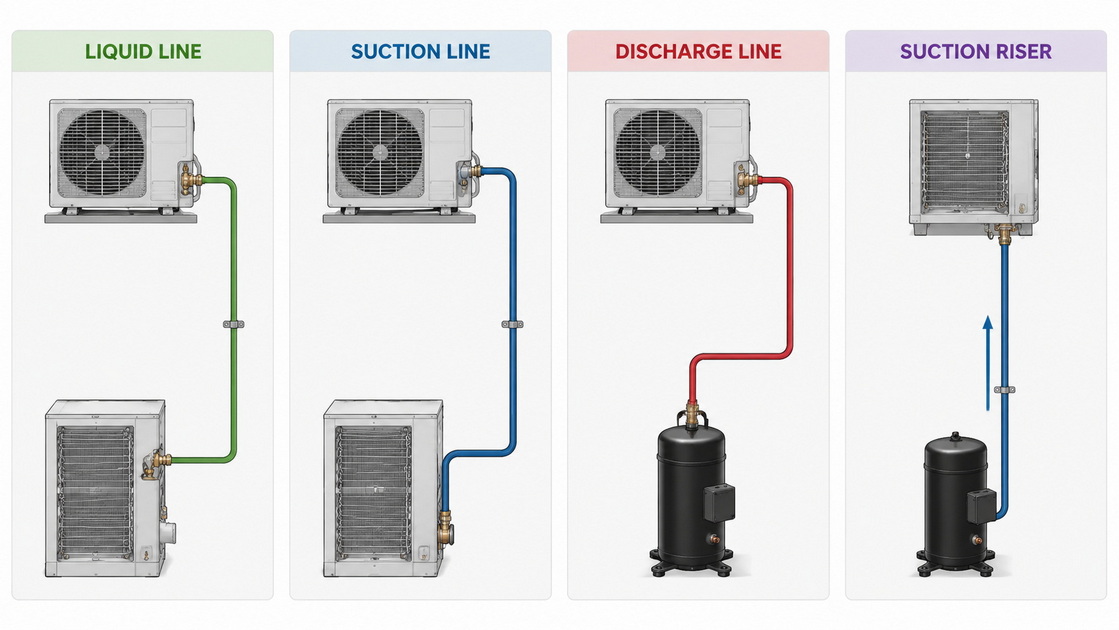

Understanding the main refrigerant line types helps clarify why sizing matters.
| Line Type | Purpose | Main Concern |
|---|---|---|
| Liquid line | Carries high-pressure liquid refrigerant to the metering device. | Excess pressure drop can affect system feeding. |
| Suction line | Returns low-pressure vapor refrigerant to the compressor. | Incorrect sizing can hurt oil return and compressor health. |
| Discharge line | Moves hot gas from the compressor to the condenser. | Must support correct flow and pressure behavior. |
| Suction riser | Vertical section of suction piping. | Must help oil move upward without excessive loss. |
Each line plays a different role. The suction and liquid lines are the most familiar to homeowners, but all parts of the refrigerant circuit must work together.

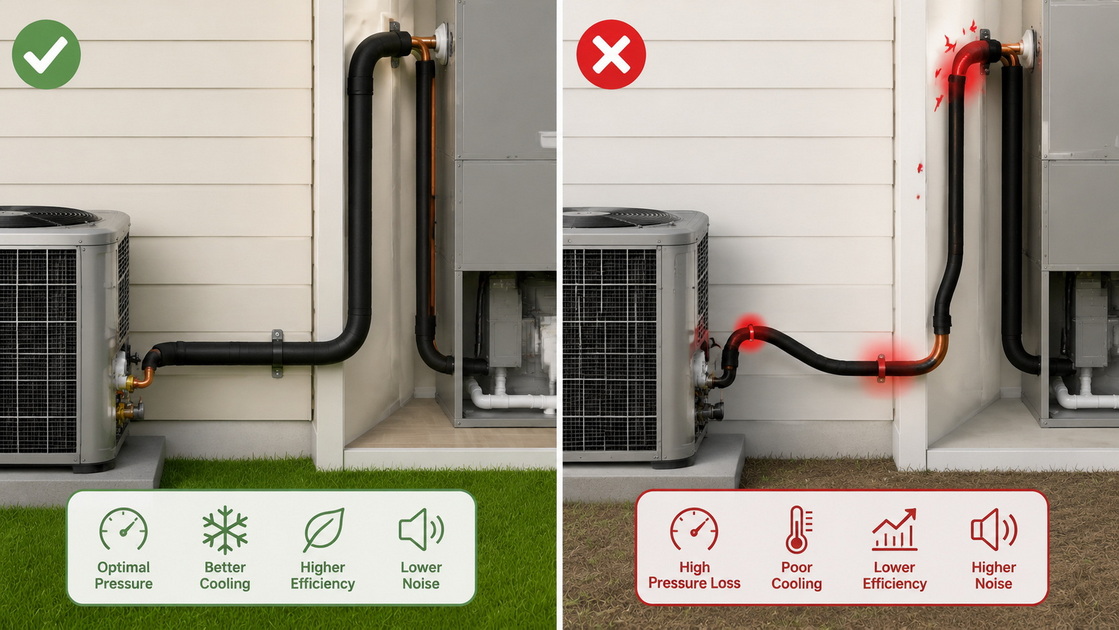

Improper refrigerant line sizing can cause several problems that may not appear right away:
- Reduced energy efficiency.
- Compressor stress.
- Poor oil return.
- Lower cooling or heating capacity.
- Frozen coils or unstable system operation.
- Excessive pressure drop.
- Shortened equipment life.
These issues often show up as comfort problems, higher utility bills, or repeated service calls. In many cases, the root cause is not the equipment itself, but the way the refrigerant piping was designed or installed.
In the field, the best refrigerant line sizing decisions come from combining technical knowledge with real installation experience.
For example, a home with a long line set between a rooftop condenser and an interior air handler may need a different approach than a simple installation with a short connection. Even if the equipment model is the same, the equivalent line length, vertical lift, and number of fittings can change the correct line selection.
This is why professional sizing matters. A well-installed system is not just about placing equipment in the right location. It is about making sure the entire refrigerant circuit is designed to support the system's performance from day one.
Most homeowners do not think about refrigerant line sizing until a problem appears. But the line set affects daily comfort, operating cost, and long-term reliability.
A properly sized system is more likely to cool evenly, handle moisture better, and avoid unnecessary strain on the compressor. That can translate into lower maintenance needs and better overall performance.
If a system was installed years ago, has been repaired several times, or uses a modified line run, it may be worth having the refrigerant piping reviewed.
A careful sizing process usually follows these steps:
1. Confirm the equipment model and refrigerant type.
2. Measure the actual path between indoor and outdoor units.
3. Calculate the equivalent line length.
4. Check vertical separation.
5. Review the manufacturer's sizing chart.
6. Confirm any needed charge adjustments.
7. Install, test, and verify the system.
This process helps ensure the final installation matches the equipment design. It also reduces the chance of performance loss caused by assumptions or shortcuts.
Here are a few best practices that help improve system performance:
- Keep refrigerant line runs as short and direct as possible.
- Avoid unnecessary fittings and sharp bends.
- Insulate lines properly.
- Match the line size to the manufacturer's specifications.
- Check oil return requirements on longer runs.
- Test the system thoroughly after installation.
These practices help protect efficiency and reduce callbacks. They also support better long-term reliability.
Modern HVAC systems continue to place greater importance on correct installation. Newer equipment and refrigerants often require tighter attention to design details, including line sizing, airflow, and charge verification.
That means homeowners should expect more than a basic equipment swap. Any new installation should be planned as a complete system, not as a simple parts replacement.
For contractors, this also means there is less room for approximation. The refrigerant circuit must be matched to the equipment and the real-world installation conditions.

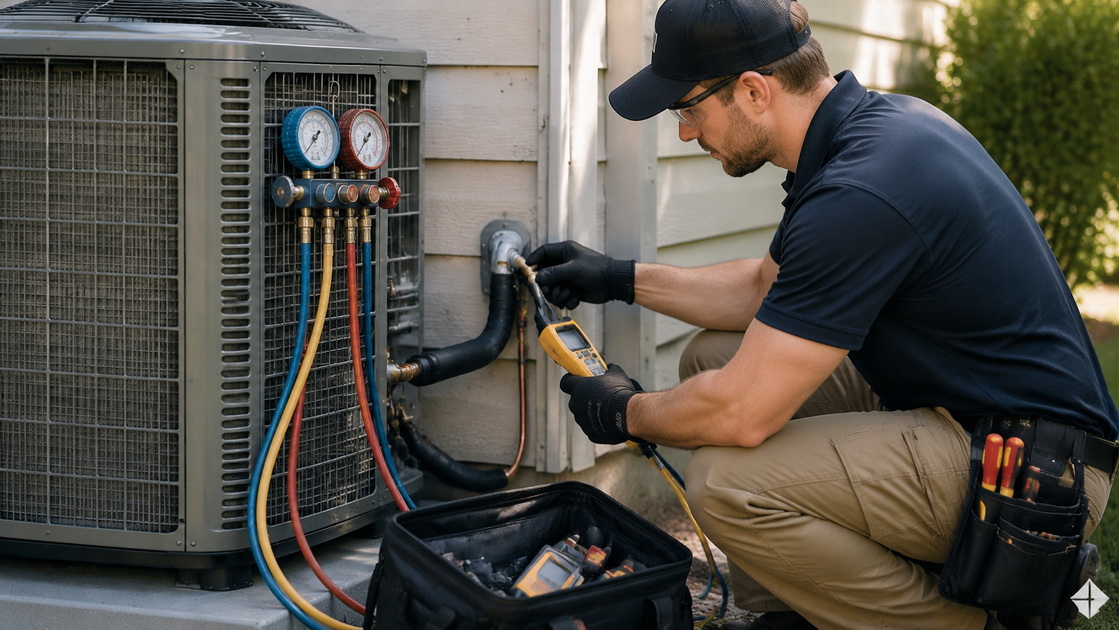

A refrigerant line set should be inspected if:
- The system is underperforming.
- The line set shows damage, corrosion, or insulation failure.
- The equipment has been replaced with a different model.
- The home has an unusually long or complex line run.
- The system has repeated refrigerant or compressor issues.
In some cases, the best solution is to replace the line set entirely. In others, the existing piping may be reused if it meets the equipment requirements and is in good condition.
Refrigerant line sizing may seem like a small detail, but it has a major impact on HVAC performance. When the lines are sized correctly, the system is more efficient, more reliable, and easier to maintain.
For homeowners, the lesson is simple: good comfort starts with good installation. For contractors, proper line sizing is one of the clearest signs of professional workmanship.
If you are planning a new HVAC installation, replacing an old system, or troubleshooting refrigerant line issues, Mega Services Heating & Cooling can help assess your setup and recommend the right solution for your home.
Proper refrigerant line sizing helps an HVAC system move refrigerant and oil correctly, maintain efficiency, and protect long-term reliability. The right line set depends on equipment capacity, refrigerant type, line length, vertical rise, and manufacturer requirements. A well-designed installation improves comfort, reduces stress on the compressor, and helps the system perform as intended.
Refrigerant line sizing is the process of selecting the correct pipe diameter and layout so refrigerant can move through an HVAC system efficiently while supporting compressor oil return.
It affects efficiency, system reliability, oil return, pressure drop, and overall comfort. Incorrect sizing can reduce performance and shorten equipment life.
Sometimes yes, but only if it matches the new equipment requirements and is in good condition. It should always be checked before reuse.
Undersized lines can create pressure drop, reduce capacity, strain the compressor, and make oil return more difficult.
Technicians should review equipment model, refrigerant type, total line length, vertical rise, fittings, and manufacturer specifications.
