HVAC airflow determines how effectively your heating and cooling system delivers comfort throughout your home. When airflow and heat transfer do not match a room's needs, the result can be uneven temperatures, lingering humidity, and unnecessary energy use—even when the equipment still runs.
At Mega Services Heating & Cooling, our focus is helping families create safe, comfortable, energy-efficient homes through heating and air conditioning installation, repair, and maintenance. This guide explains the physics behind comfort and the practical questions homeowners should ask before approving repairs or replacement.

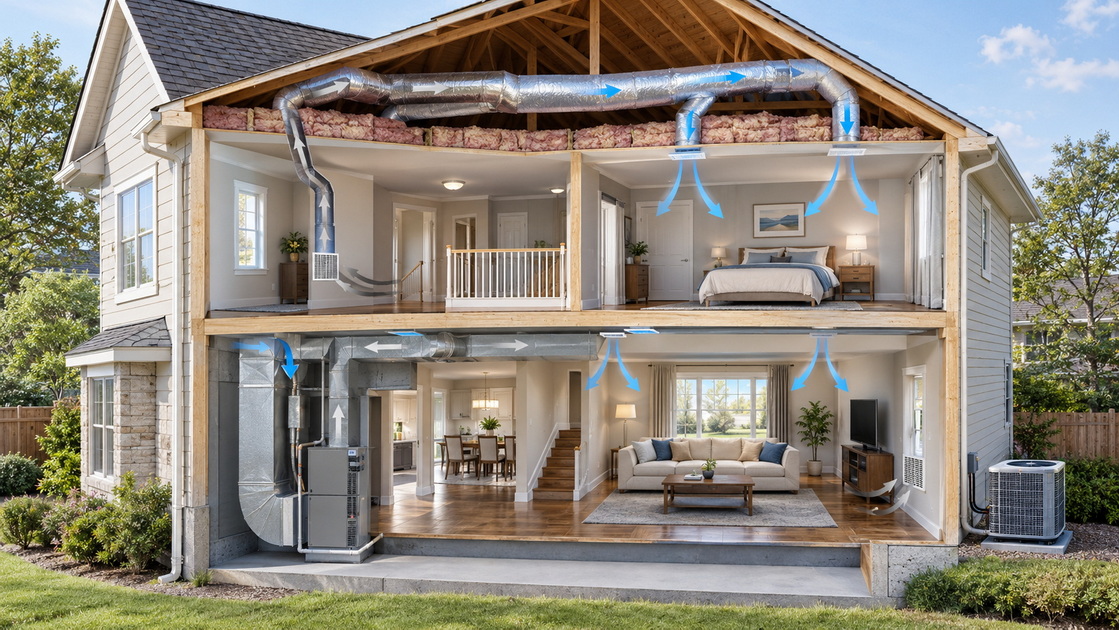

Airflow is the volume of air moving through a system over time. In residential heating and cooling, technicians commonly express it in cubic feet per minute, or CFM.
Heating and cooling capacity describes something different: how quickly equipment adds or removes heat. In the United States, that rate is usually expressed in British thermal units per hour, or BTU/h.
Think of airflow as the delivery service and heating or cooling capacity as the cargo. A powerful unit cannot provide consistent room temperatures if its distribution system cannot deliver the required conditioned air.
Comfort therefore depends on three connected factors:
- The heating or cooling load of each room.
- The equipment's capacity under actual operating conditions.
- The airflow that reaches and leaves each space.
Sensible heat changes air temperature. Under approximately standard air-density conditions, the relationship is:
Sensible BTU/h=1.08×CFM×ΔT
Here, ΔT means the temperature difference, in degrees Fahrenheit, between the air entering and leaving the equipment. Rearranging the equation gives:
CFM=(Sensible BTU/h)/(1.08×ΔT)
The 1.08 factor combines air density, specific heat, and the conversion from minutes to hours. It is an approximation—not a universal constant. Altitude and substantially different air conditions require appropriate corrections.
Suppose a heating system delivers 32,400 BTU/h of sensible heat with a 30°F temperature rise. Its calculated airflow is:
32,400÷(1.08×30)=1,000CFM
This is an illustrative calculation, not a recommendation for your home. A furnace's allowable temperature rise and a heat pump's operating requirements must come from the manufacturer's documentation.
Measurement boundaries matter, too. Equipment-level measurements describe heat transfer across the appliance. They do not automatically prove that every room receives its intended share after duct losses and distribution differences.

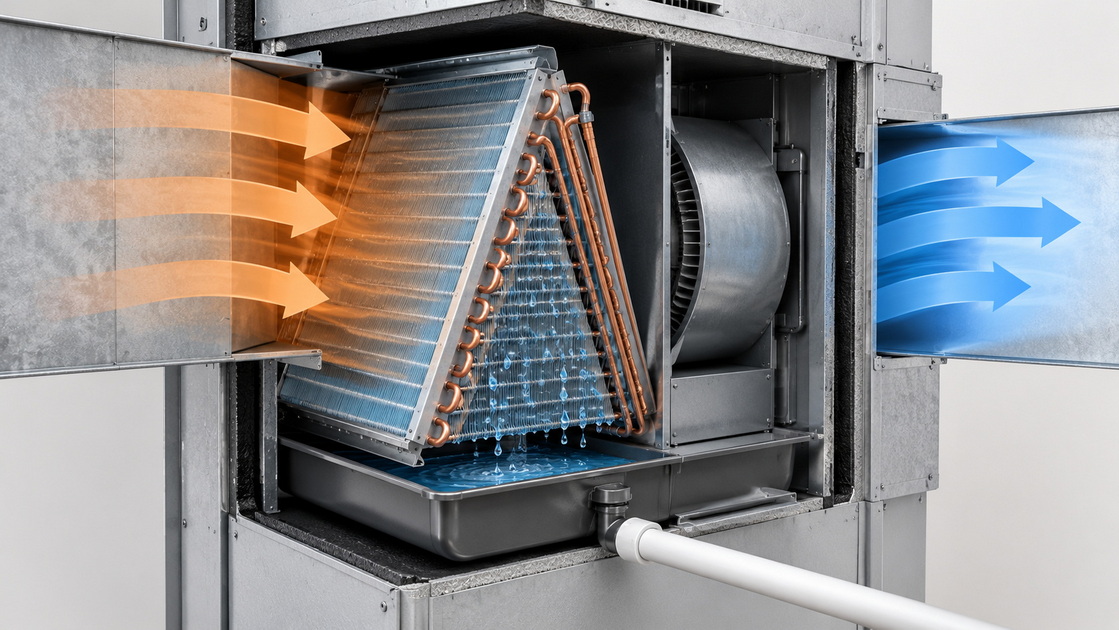

Air conditioning performs two jobs. Sensible cooling lowers air temperature. Latent cooling removes moisture when water vapor condenses on the cold indoor coil.
This distinction explains why a home can feel cool but clammy. A thermostat reading alone does not describe humidity control or verify total cooling performance.
The sensible-heat equation cannot calculate total cooling capacity unless the moisture-removal component is also accounted for. Likewise, applying the unit's total rated cooling capacity directly to that equation can produce a misleading airflow estimate.
One ton of cooling represents 12,000 BTU/h of cooling capacity. Around 400 CFM per ton is a familiar design reference, but it is not a setting every system should use.
Climate, indoor humidity, equipment design, and manufacturer performance data affect the appropriate airflow. Some dry-climate applications use higher airflow; moisture-control priorities can change the design choice.
Do not adjust blower settings based on a generic online rule. Airflow must remain within the equipment's approved operating range, with performance verified afterward.
Symptoms provide clues, not final diagnoses. Similar complaints can come from different combinations of equipment, ductwork, and building conditions.
| Homeowner observation | Possible explanation | Useful professional check |
|---|---|---|
| One bedroom stays uncomfortable | Room load mismatch, restricted supply, or inadequate return path | Room airflow and load review |
| Weak airflow throughout the home | Filter restriction, blower issue, or duct resistance | Filter, blower, and pressure checks |
| Cool air but persistent clamminess | Moisture load or insufficient latent performance | Humidity and cooling-performance assessment |
| Uneven comfort despite new equipment | Distribution or selection problem | Duct evaluation and design review |
The most useful question is not simply, "Is the air cold?" It is, "Does this system deliver the right amount of conditioning to each room?"
For a simple illustration, imagine two rooms served by the same system. One has substantial afternoon sun exposure; the other is shaded. Equal airflow does not necessarily mean equal comfort because their cooling loads can differ. The shaded room may reach its target while the sunny room remains warm. This hypothetical example shows why balancing should consider room requirements rather than merely making every register feel equally strong. It is not a documented customer case or a substitute for measurements.

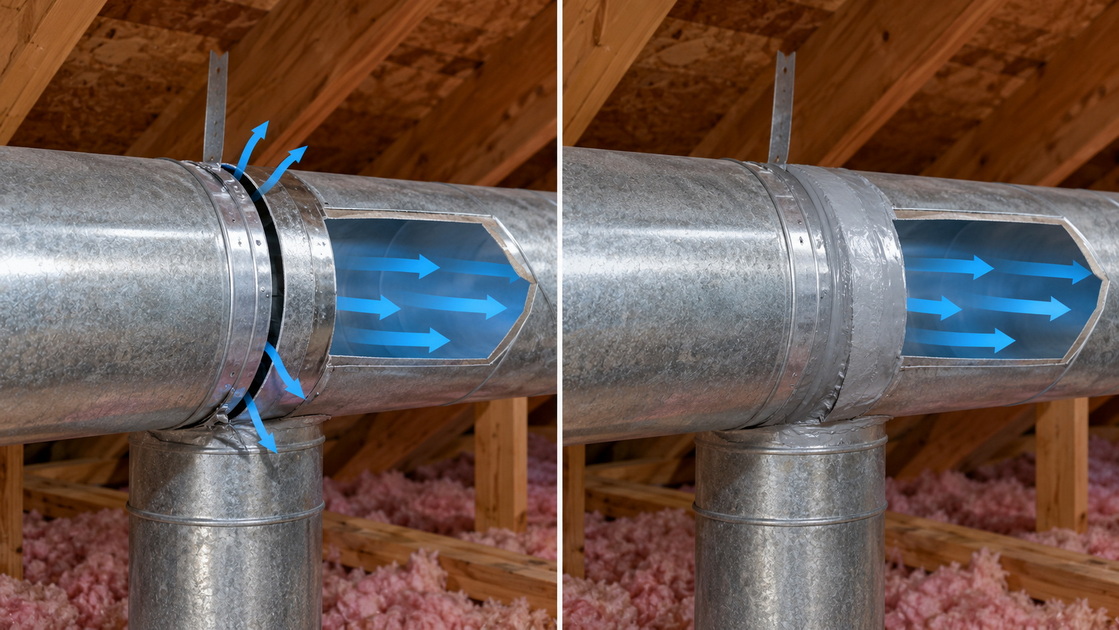

ENERGY STAR estimates that a typical house loses about 20–30% of the air moving through its duct system through leaks, holes, and poorly connected ducts.
That figure describes duct air loss—not a guaranteed 20–30% reduction in your utility bill after repairs. Actual savings depend on leakage location, climate, duct insulation, and the home's existing conditions.
Ducts outside conditioned space deserve particular attention. Even correctly selected equipment can struggle when its delivery network loses conditioned air before it reaches occupied rooms.
Ask your contractor which sections are damaged, how leakage was identified, and whether testing can document the improvement. A repair proposal should explain the problem rather than promise an unsupported savings percentage.
Before scheduling service, gather information that can make diagnosis more efficient:
1. Inspect the filter. Check monthly during heavy-use periods and replace or clean it according to its condition and manufacturer instructions.
2. Clear accessible vents. Move furniture, rugs, and curtains away from supply registers and return grilles.
3. Record the pattern. Note which rooms are uncomfortable, when the problem occurs, and whether doors are open or closed.
4. Track temperature and humidity. These observations help distinguish temperature complaints from moisture concerns.
5. Describe recent changes. Mention a new filter type, renovation, equipment replacement, or newly occupied room.
These checks do not require opening equipment cabinets or altering electrical components. Leave blower adjustments, refrigerant work, and internal equipment testing to qualified professionals.
A homeowner's notes are useful evidence, but they do not replace instrument-based testing or a room-by-room assessment.
A useful assessment connects the complaint with measurable system behavior. Depending on the equipment and symptoms, ask whether the visit includes:
- Filter sizing, condition, and compatibility review.
- Supply and return duct inspection.
- External static-pressure measurements compared with manufacturer limits.

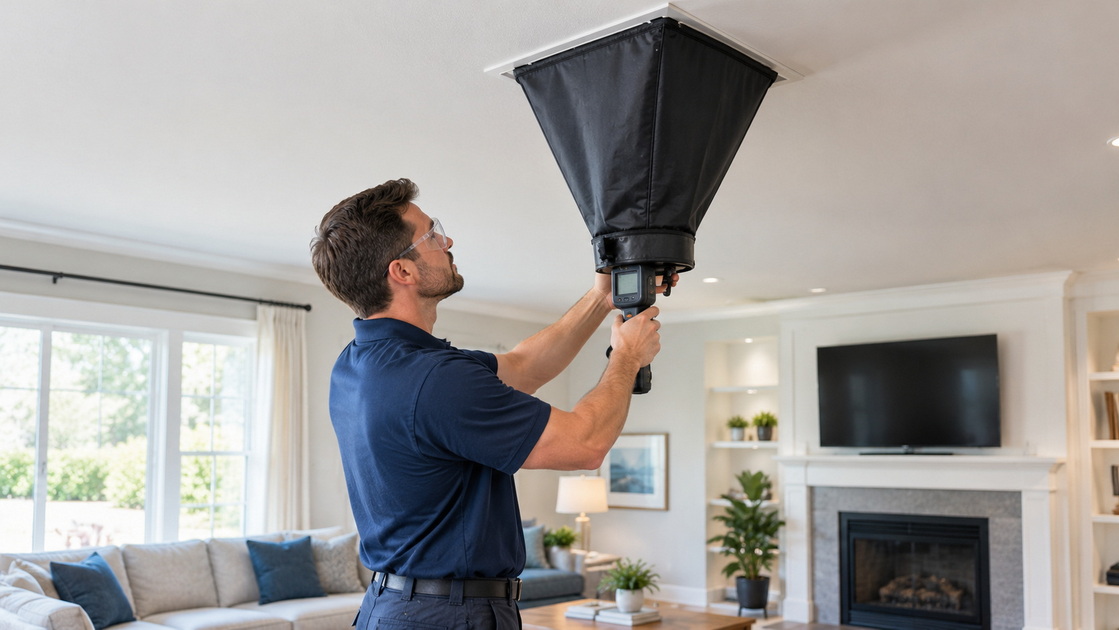

- Blower settings and airflow verification using an appropriate method.
- Temperature measurements and, when relevant, humidity evaluation.
Static pressure helps characterize the resistance the blower encounters. It should be interpreted with the equipment's performance information, not treated as a standalone airflow measurement.
A temperature difference is similarly incomplete on its own. Because airflow and heat transfer interact, a single reading cannot establish the condition of the entire system.
A useful service report separates what was observed, what was measured, and what remains uncertain. It should explain why the recommended repair addresses your complaint.
For example, "The upstairs room needs more cooling" is less actionable than a documented explanation of whether the room has insufficient delivered airflow, excessive heat gain, or both.
Ask which measurements will be repeated after the work. Verification helps connect a completed repair with improved performance.
Replacement decisions should not rely only on the old unit's capacity or the home's square footage. A stronger design process links three distinct tasks:
- Manual J calculates the home's heating and cooling loads, including room-level requirements.
- Manual S guides equipment selection using those loads, design conditions, and manufacturer performance data.
- Manual D addresses residential duct design so the distribution system supports the selected equipment.
These tasks answer different questions: how much conditioning the home needs, which equipment can provide it, and how air reaches the rooms.
Manufacturer data also matters for variable-capacity systems. Their output and airflow can change during operation, so one airflow reading may not describe every operating stage.
Before approving installation, ask how the contractor will verify airflow and explain the intended performance. Buying equipment and confirming its operation are separate parts of delivering comfort.
A comfortable home needs more than working equipment. It needs heating and cooling capacity, airflow, moisture control, and distribution that work together.
Contact Mega Services Heating & Cooling to discuss installation, repair, or maintenance for your home. Describe your uneven temperatures, weak airflow, or humidity concerns, and ask which diagnostic checks are appropriate. Our goal is to help your family make informed decisions about a safer, more comfortable, energy-efficient living environment.
For sensible heat under approximately standard air-density conditions, divide BTU/h by 1.08 times the temperature change in °F. Use delivered heating capacity and the correct measurement boundaries. Final airflow must satisfy manufacturer requirements; cooling calculations must also consider moisture removal.
Not necessarily. A larger unit does not repair restricted filters, damaged ducts, or inadequate distribution. Equipment selection should follow load calculations and performance data, while airflow problems need their own diagnosis. Otherwise, replacement can leave the original comfort complaint unresolved.
A dirty filter can restrict airflow and make conditioning the home more difficult. However, an uncomfortable room may also have a duct, return-path, or load problem. Check the filter first, but seek further evaluation if the complaint continues after appropriate maintenance.
ENERGY STAR generally identifies 30–50% relative humidity as an appropriate building range. Colder weather may require lower humidity to limit window condensation. Persistent dampness deserves investigation because temperature control alone does not confirm that moisture loads are being managed.
Describe your symptoms and ask whether the assessment can evaluate filters, ducts, static pressure, blower operation, and room-level distribution as appropriate. Also ask how findings will be documented and how the proposed work will be checked afterward. Clear expectations make the visit more useful.
